Precision bench drill

A small bench-top drilling machine is good, for example, to drill a hole in a iron plate. Then I saw out with a jig saw the necessary part.

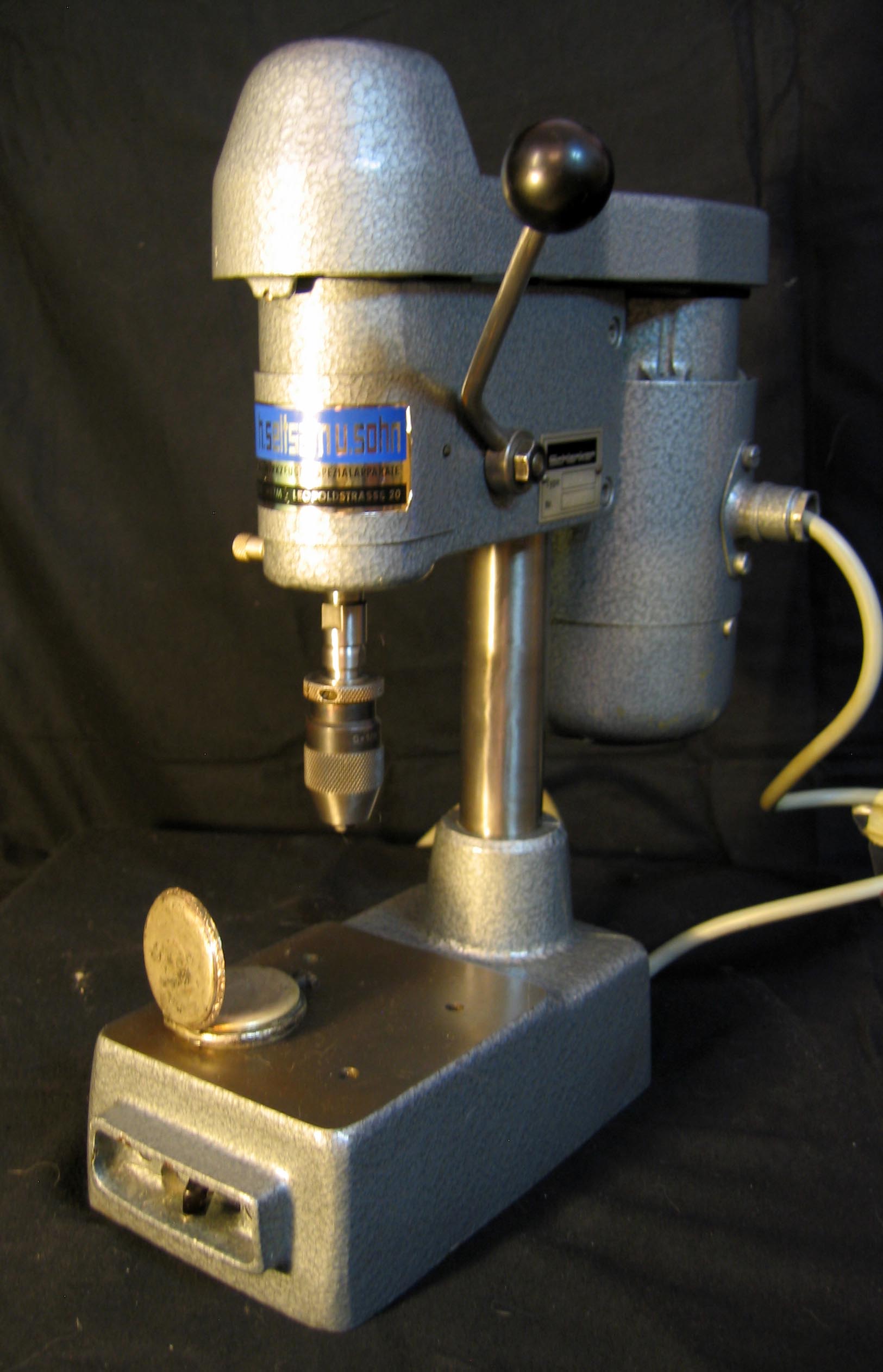

Precision bench drill Schlenker BS2

Precision bench drill Schlenker BS2

This machine is for fine and precise drilling. The hardened and polished spindle put in combined bearings and is equipped with clamp for collets 8 mm. You can also use the chuck. The depth limiter has a Ring-micrometer, accuracy 0.01 mm. There is holes with thread M6 to clamp the workpiece on the work plane. The machine is driven by a 380 volt three-phase motor.

The Swabian engineers Thilo and Uli Huber moved the company Hans Schlenker from Villingen-Schwenningen (Schwarzwald) to Berlin.

Technical data Schlenker BS2:

Work areas:

  • Drilling depth 20 mm
  • Distance between spindle and table 15-110 mm
  • Table size 110 x 115 mm
  • Power 0,125 kW
  • Spindel seat for collet shanks B-8
  • Spindle bore Ø 8 mm

Weights and Dimensions:

  • Length 280 mm
  • Width 120 mm
  • Height 280 mm
